Orchestra Lifts
Versatile Use of Orchestra Lifts in Stage Design
Orchestra lifts are located at the front of the stage in front of the proscenium.
Used primarily to reconfigure the front of the stage: at stage level they are an extension of the stage, at house level they can be used for additional seating and at pit or play level they are used for the orchestra.
Programmable Precision & Repeatable Efficiency
Gala orchestra lifts are safe and efficient using proven Spiralift® technology. A wide range of speeds and loading capacities are available.
Speed
Standard specifications are around 6 ft/min (2m/min) but this can be increased to accommodate higher travels.
Capacity
Standard live static loading is 150 lb/ft2 (750 kg/m2) and live lifting capacity is typically 50 lb/ft2 (250 kg/m2).
Example of control panel / handheld
Safeties & Accessories
All Gala SystemsTM lifts integrate our programmable controls, safeties (railings, stops, features) and other accessories when needed.
Spiralift®

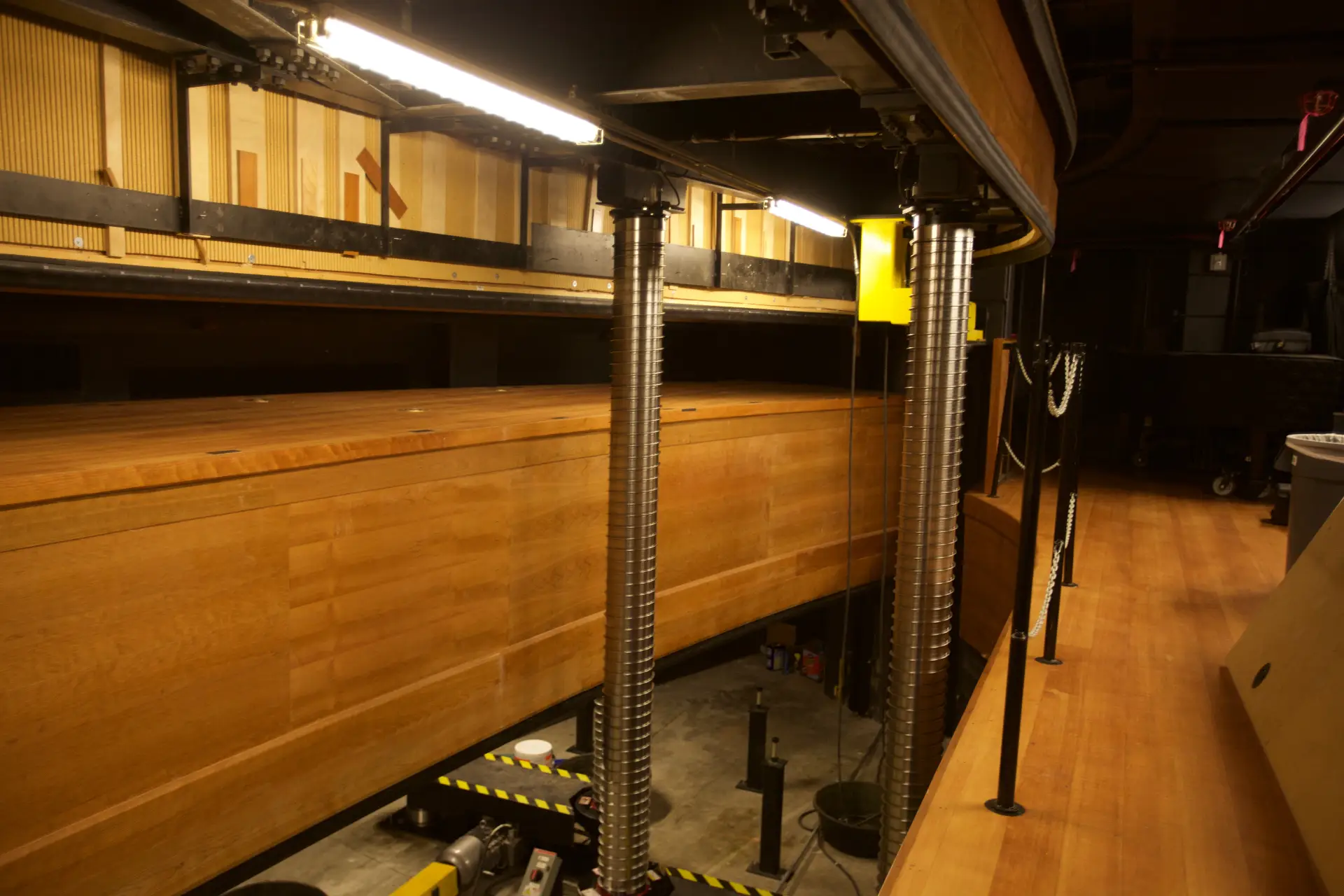

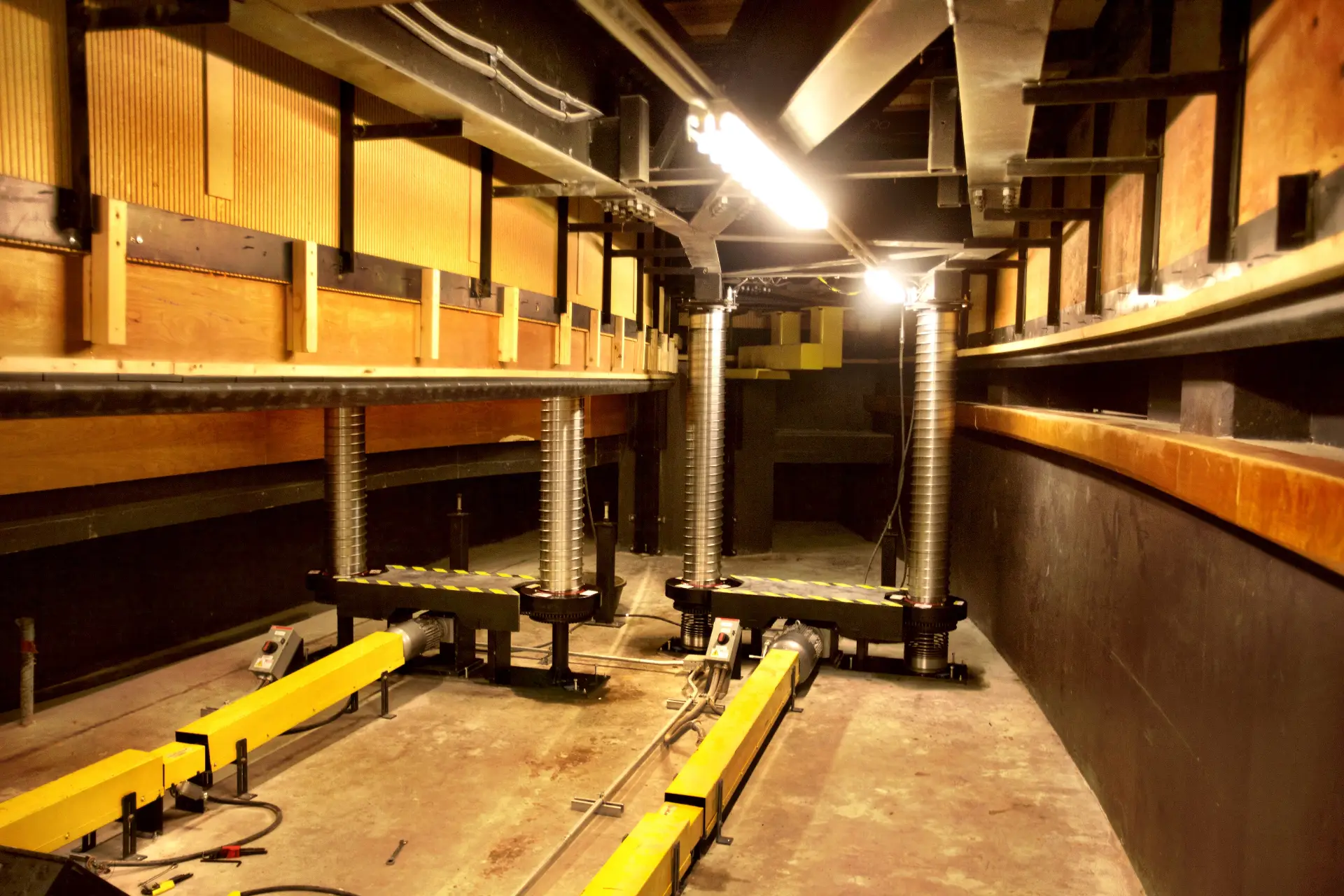

Spiralift® models used in Orchestra Lift projects.

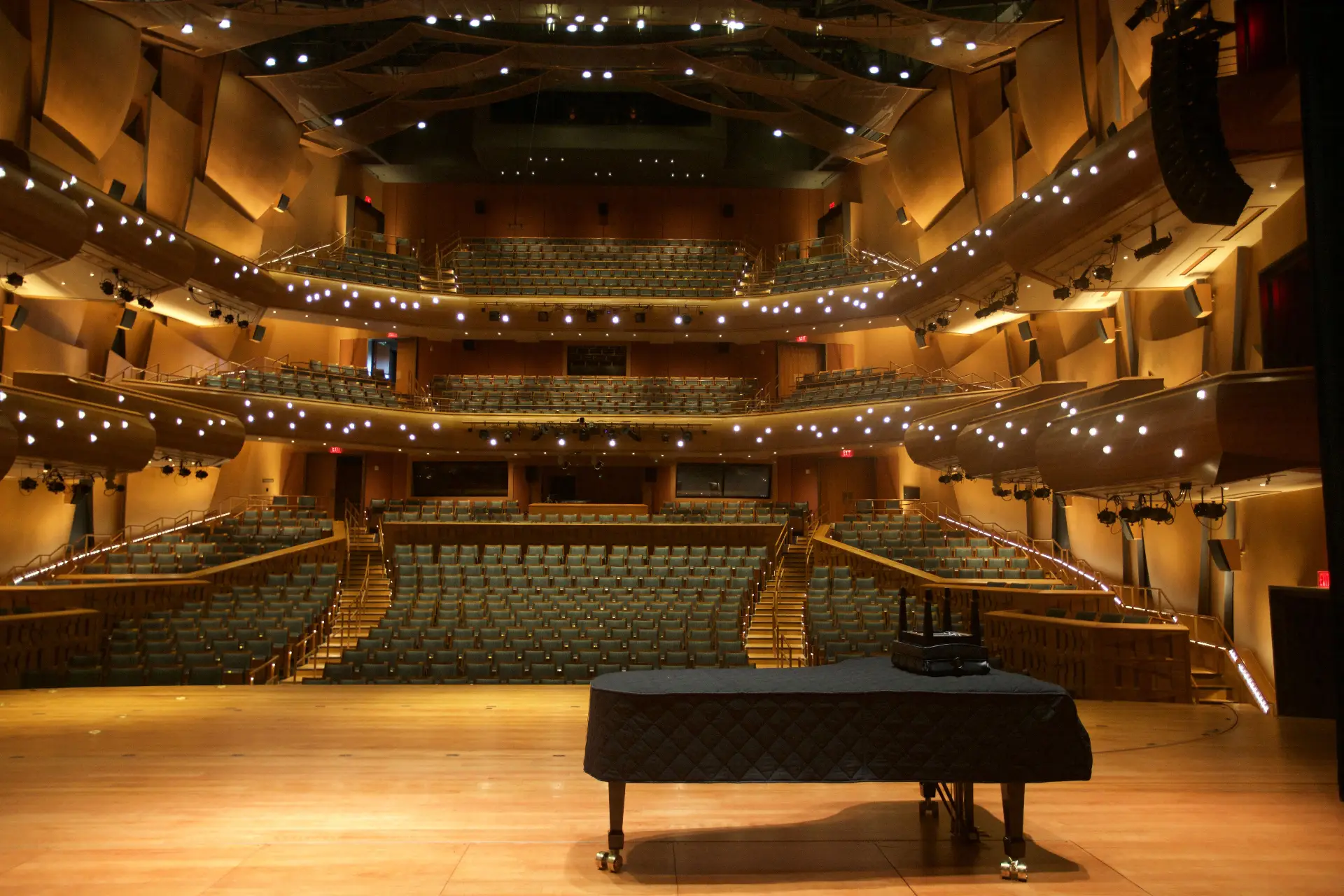

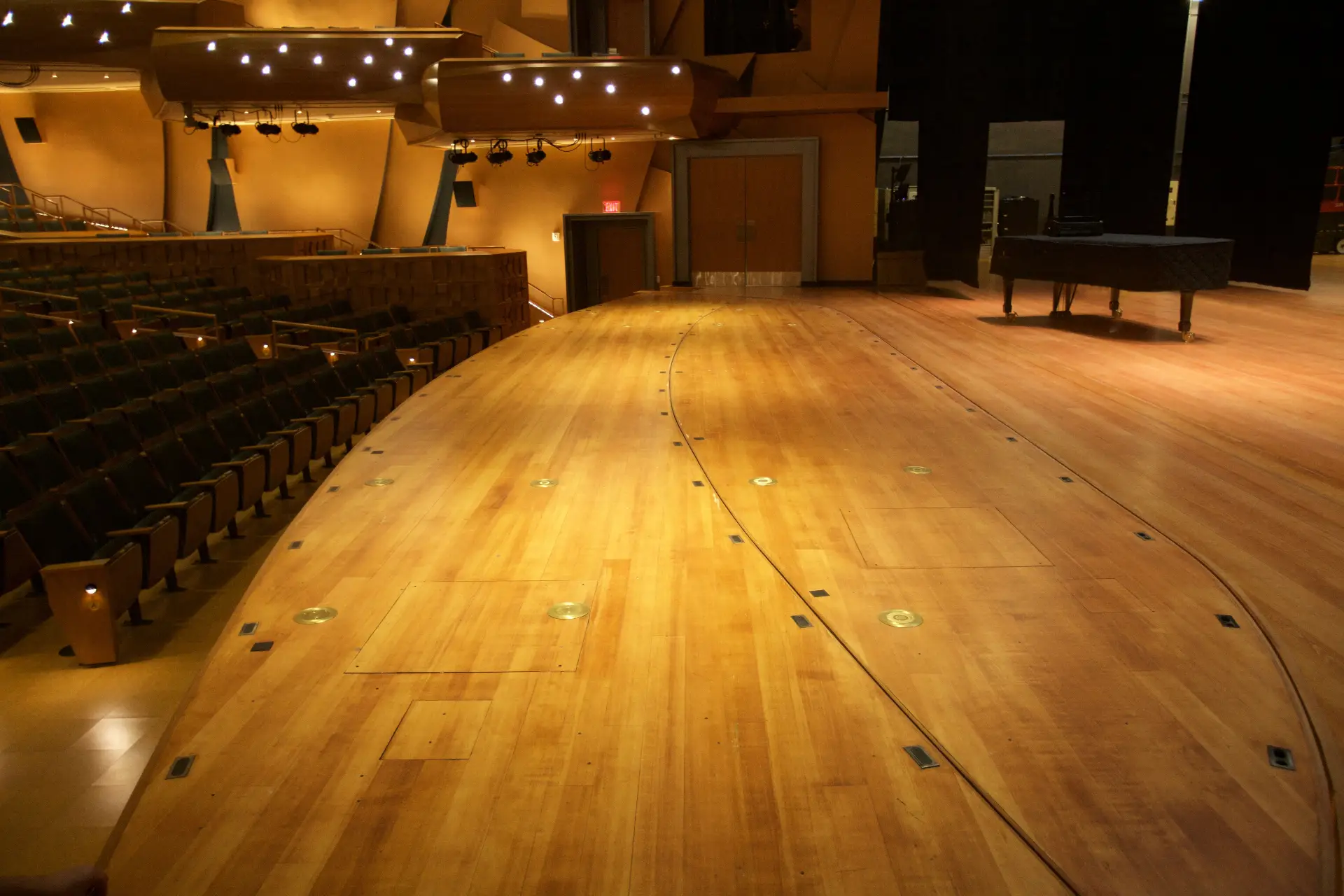

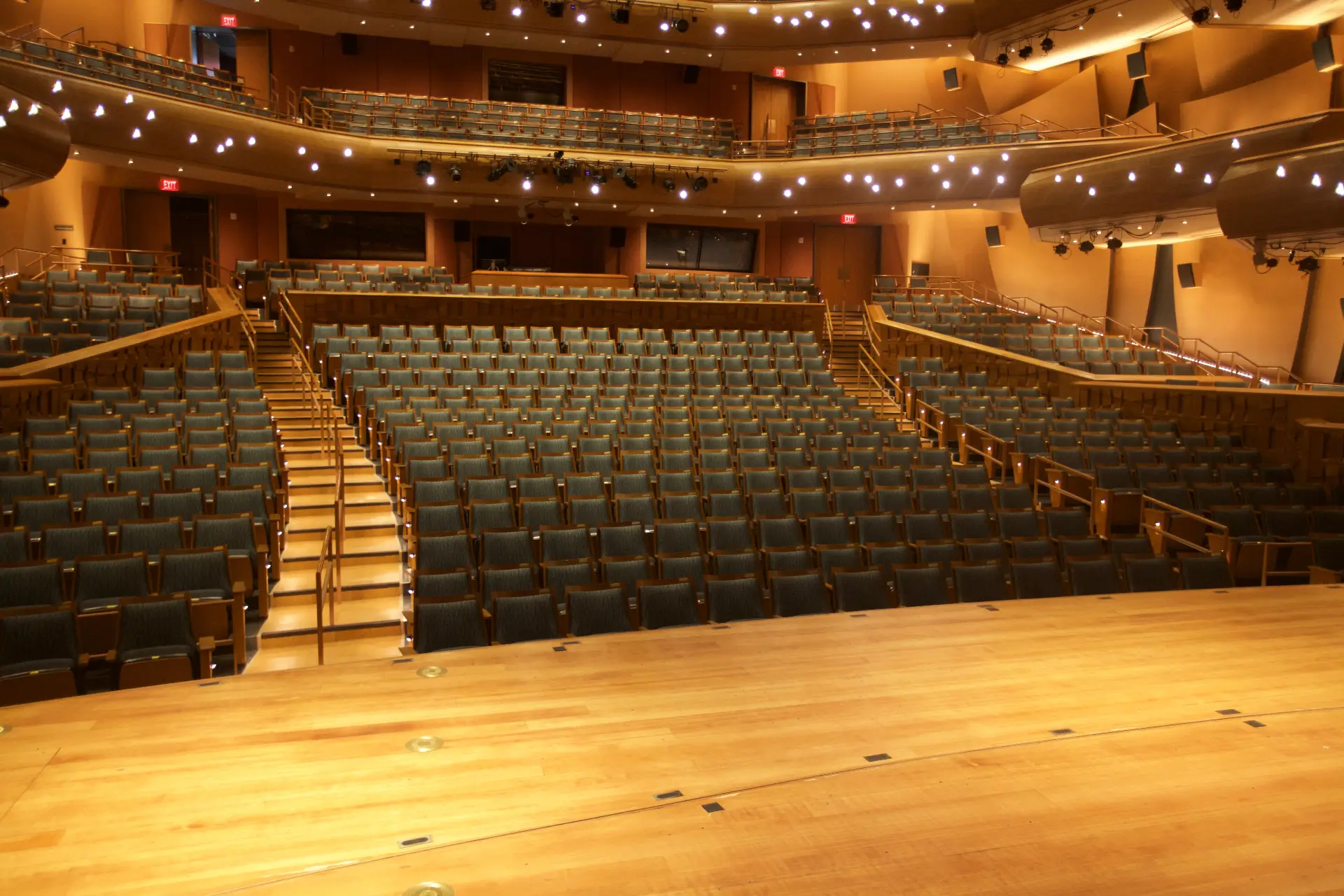

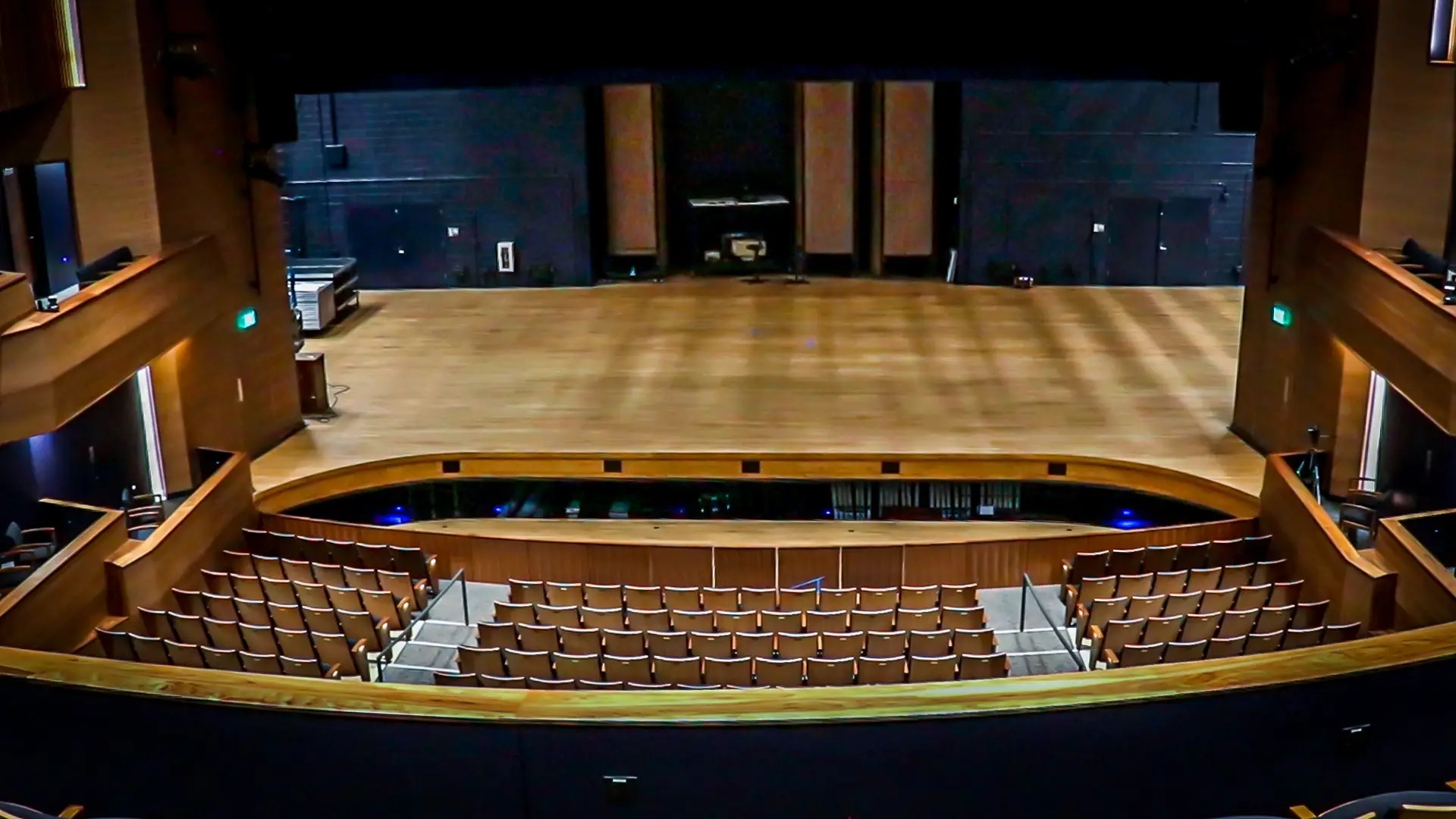

Orchestra Lift Projects
